Safety Glass Testing Apparatus

Determining the resistance of glazing material to impact by the penetrationmethod.

Principle:

The specimen issupported vertically in a steel frame and an impact shot bag is released from apre-determined height to strike the specimen at the centre. The height isprogressively increased until fracture occurs.

RelatedStandards:

AS/NZS 2208 Safetyglazing materials in buildings Appendix D: Impact Test

GB 15763.3 Safetyglazing materials in building Part 3: Laminated glass Appendix C: Test devicefor the impact performance of shot bag

ANSI Z97.1 SafetyGlazing Materials Used in Buildings - Safety Performance Specifications andMethods of Test - Clause 5.1: Impact Test

Apparatus:

1)Impact testing frame:

  Frame Size: 1900mm*1500mm*3570mm

  Samples Size: 1930mm*864mm

  Lift: Electric

  Release: Auto

  Maximum impact height: 1200mm (customized)

  Rubber Pad Width: 15mm

  Rubber Pad Thickness: 3mm

  Rubber Pad Hardness: Shore A50

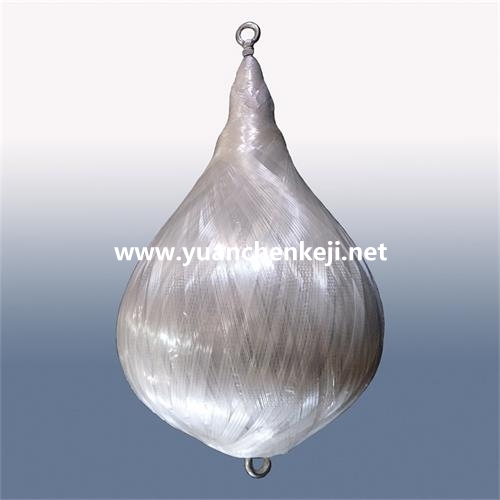

2) Impact shot bag:

  Weight: 45kg0.1kg  46kg0.1kg

  Height: 330mm 13mm

  Max diameter: 250mm

  Leather thickness: 1.5mm

  Lead sand size: 2.5mm

  Customized: 25kg /48kg
