Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass
Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass
Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass

Test Method for Ball Drop Impact Resistance of Laminated Architectural Flat Glass

420-5000 USD ($)/Set

Product Details:

  • Application Safety Glazing Materials
  • Specimen Size 300*300/610*610 Millimeter (mm)
  • Usage Laminated Glass Testing
  • Supply Ability : 1000 Set Per Month
  • Click to view more
X

Price And Quantity

  • 420-5000 USD ($)/Set
  • 1 Set
  • 420.00 - 5000.00 USD ($)/Set

Product Specifications

  • 300*300/610*610 Millimeter (mm)
  • Laminated Glass Testing
  • Safety Glazing Materials

Trade Information

  • Tianjin
  • Telegraphic Transfer (T/T)
  • 1000 Set Per Month
  • 30 Days
  • Contact us for information regarding our sample policy
  • Plywood case (Meet import and export requirements)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

227 g Ball Test

2260 g ball test

Test Method for Ball Drop Impact

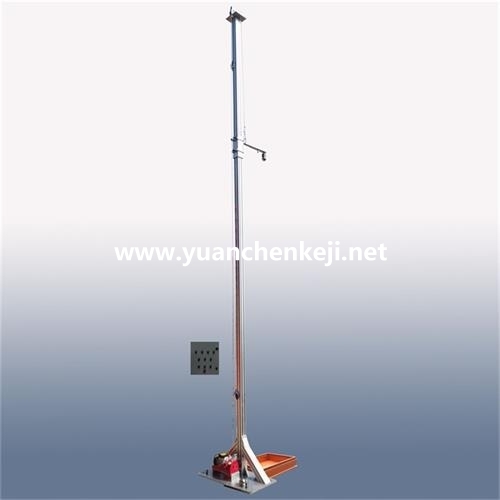

Glazing Materials Ball Test Device

Determination of whether the safety glazing material has a certainminimum strength and cohesion under impact from a small hard object

Suitable for impact test of safety glass and tempered glass.

Related Standard:



  1. ISO 3537 Road vehicles — Safety glazing materials —Mechanical tests– Clause 6: 227 g ball test, Clause 7: 2260 g ball test

  2. GB 15763.3 Safety glazing materials in building Part 3:Laminated glass--Appendix B Drop ball impact specimen support




Steel Ball:2260g / 82mm 1040g / 63mm 535g / 51mm 508g / 50mm 227g / 38mm


Drop Height: 1000mm, 5000mm, 12000mm, Customized


Automatic release and lift. Power: 220V 50Hz 580W





Supporting fixture:


a) Support Size: 350mm*350mm and 660mm*660mm (Customized)


b) Frame width 15mm


c) Steel box height 150mm


d) Rubber Gasket: thickness 3mm, width 15mm, hardness shore A50


e) Interposed sheet of rubber: thickness 3mm, hardness shore A50


Applied Test Pieces Size: 300mm*300mm 610mm* 610mm














227 g Ball Test, 2260 g Ball Test, Test Method for Ball Drop Impact,Ball Test, Support Fixture, Support Frame, Safety Glazing Materials Test,Mechanical Test, Drop Ball Impact, Ball Drop, Glass test, Impact Test, GlassImpact





Support Fixture and frame for 227 g ball test and 2260 g ball test ofSafety glazing materials. Laminated glass Drop ball impact specimen support.Related standard ISO 3537. Professional impacting testing equipment ofMechanical tests for Building glazing and Road vehicles glazing








This testing device confirms to the standardsof ISO3537and GB15763.3. It is applicable for the impact performance test ofthe equipment enclosure. It has the advantages of accurate performance andconvenient operation as well as reasonable layout. Adjusted to a certainheight, the steel ball, whose weight is required, falls down to hit the testingsample. Then the tester can judge the quality of the sample according to thedamage degree of the testing sample. It can be used in the fastness test of theenclosure with the material of plastic, ceramic, acryl and Glass fiber.
